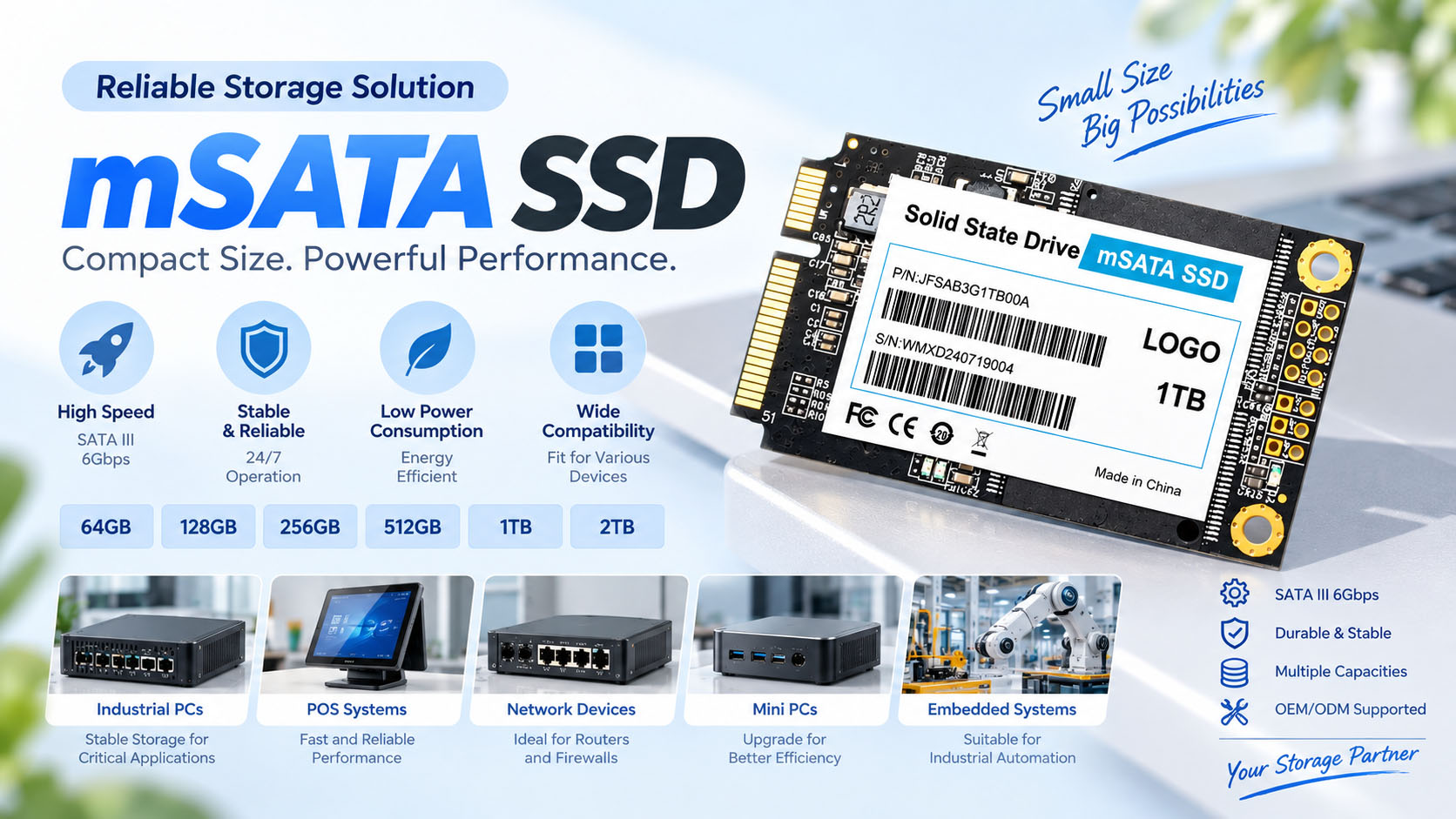

mSATA SSD
mSATA delivers high-performance, low-power storage solutions in a mini-card form factor, providing fast and reliable data read/write capabilities specifically for compact devices.
• Compact and space-saving • High-speed and stable • Low power consumption and high efficiency
Product Feature
▪ Ultimate read/write speeds, breaking storage bottlenecks
▪ No mechanical components, significantly enhanced durability and shock resistance
▪ Low power consumption and minimal heat generation extend device runtime
▪ Compact form factor adapts to diverse device designs
▪ Wide temperature tolerance for extreme environments
▪ High data security with robust interference resistance
Customized Service
It supports multiple capabilities including serial number configuration, file pre-loading, CIDNID/PID parameter setting, pin customization, disk partitioning and file encryption. It enables hardware identifier definition as required, preloads required file resources, flexibly adjusts pin configurations, plans disk storage space, and protects file data security via encryption mechanisms to meet the needs of customized deployment and information protection.
Product Parameter
| Item | Specification | Description | Unit | |||||
|---|---|---|---|---|---|---|---|---|
| Overview | Interface type | mSATA | / | |||||
| Size | 50.8 ×29.85 ×4（±0.15） | mm | ||||||
| Flash | TLC/QLC | / | ||||||
| Power down protection | Support | / | ||||||
| Quick erasure | Available | / | ||||||
| Cache | No Cache | / | ||||||
| Durability | High and low temperature resistance, waterproof, X-ray proof, vibration proof, magnetic proof, shock proof | / | ||||||

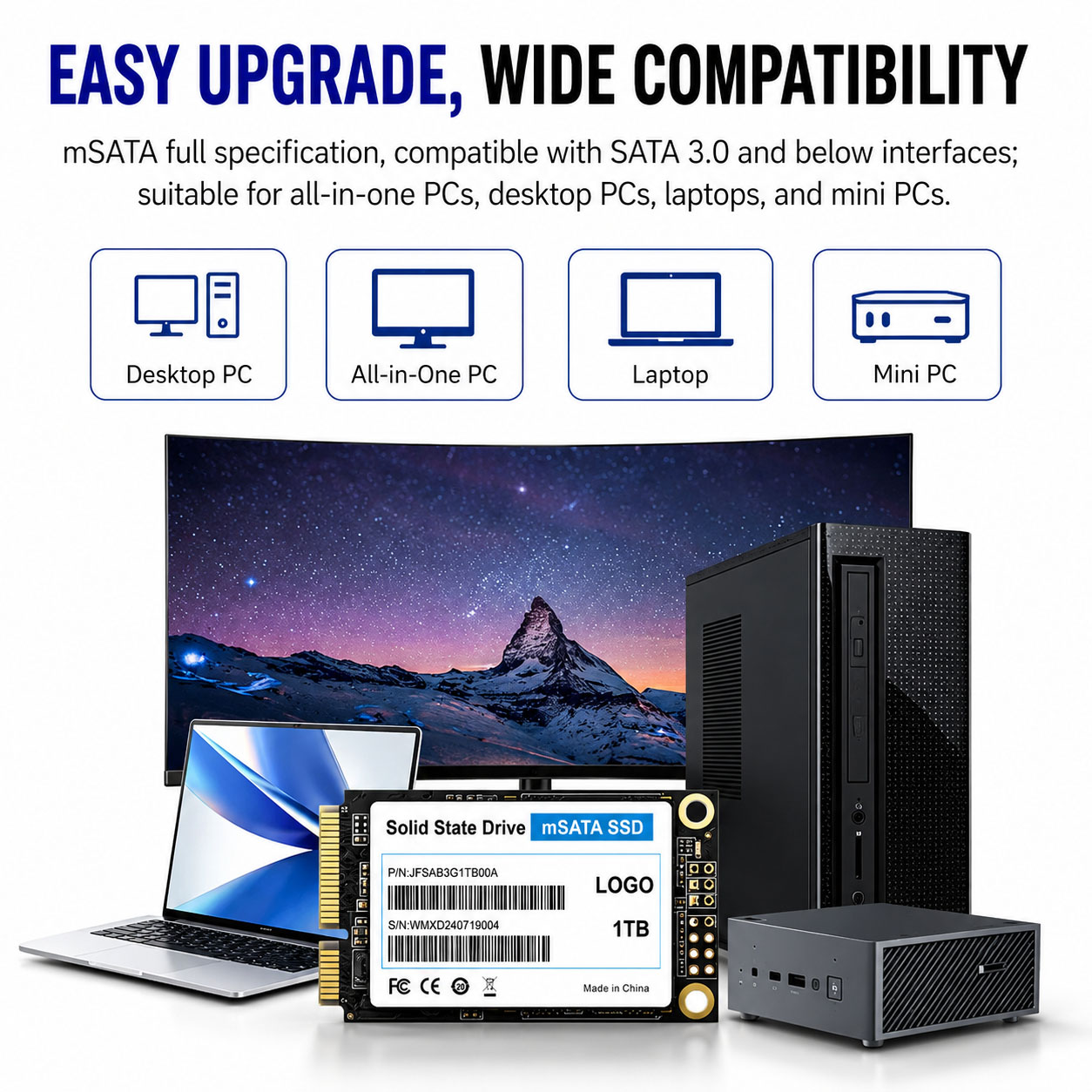

| Application | Desktop/All-in-One PCs/DVRs/NVRs and other devices | / | ||||||
| HS code | 8471701100 | / | ||||||

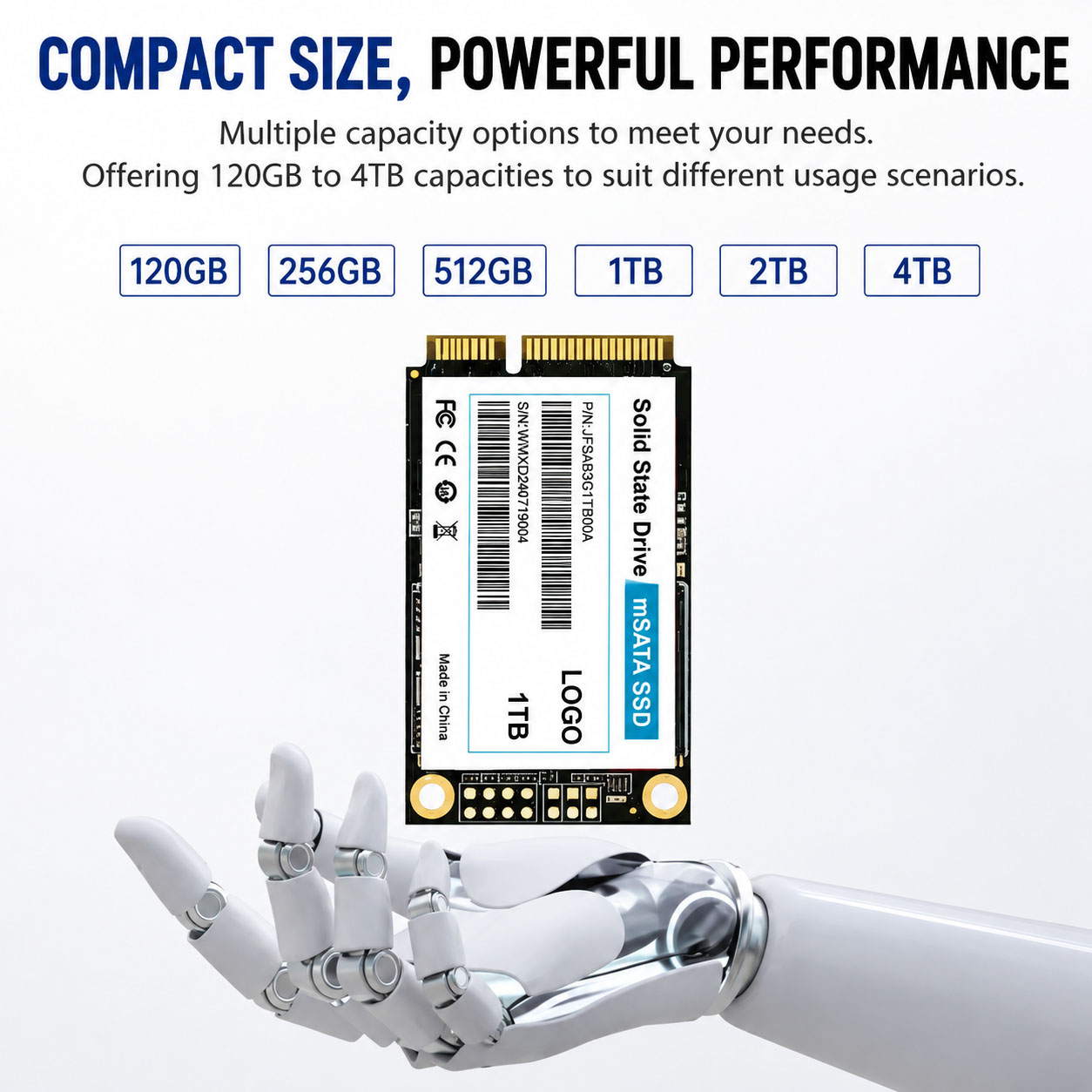

| Performance | Capacity | 120GB~4TB | GB/TB | |||||
| Sequential writing | up to 500 | MB/S | ||||||
| Sequential reading | up to 550 | MB/S | ||||||
| TBW* | 128GB | 256GB | 512GB | 1TB | 2TB | 4TB | TBW | |
| 64TBW | 128TBW | 256TBW | 512TBW | 1024TBW | 2048TBW | / | ||
| Work/Storage Environment | Working temperature | Consumer grade:0-70 Industrial grade:-40-85 |
℃ | |||||
| Storage Temperature | Consumer grade:-25-85 Industrial grade:-40-85 |
℃ | ||||||
| Working voltage | 5（±0.5） | V | ||||||
| Warranty | / | 3 | year | |||||
| Certification | / | CE/ROHS/REACH/FCC | / | |||||
| OEM/ODM | / | Custom printing logo/ code / serial numbers /volume label / labels / package, etc. | / | |||||
Note: Sourced from JESAVE Lab. Actual results vary by device.
